Windchill ALT

PTC Windchill ALT (Formerly Relex ALT)

Accelerated life testing (ALT) software accelerates stress conditions for parts or systems to induce failure. By analyzing ALT data, manufacturers can develop accurate predictions of product failure behavior earlier than ever.

PTC Windchill ALT enables manufacturers to streamline ALT analyses and infer product behavior under normal operating conditions from those analyses. Ultimately, the software helps organizations identify and resolve component and product weaknesses sooner in the design process than would otherwise be possible. It also offers complete integration with several other quality, reliability and risk analysis tools within the PTC Windchill Quality Solutions suite.

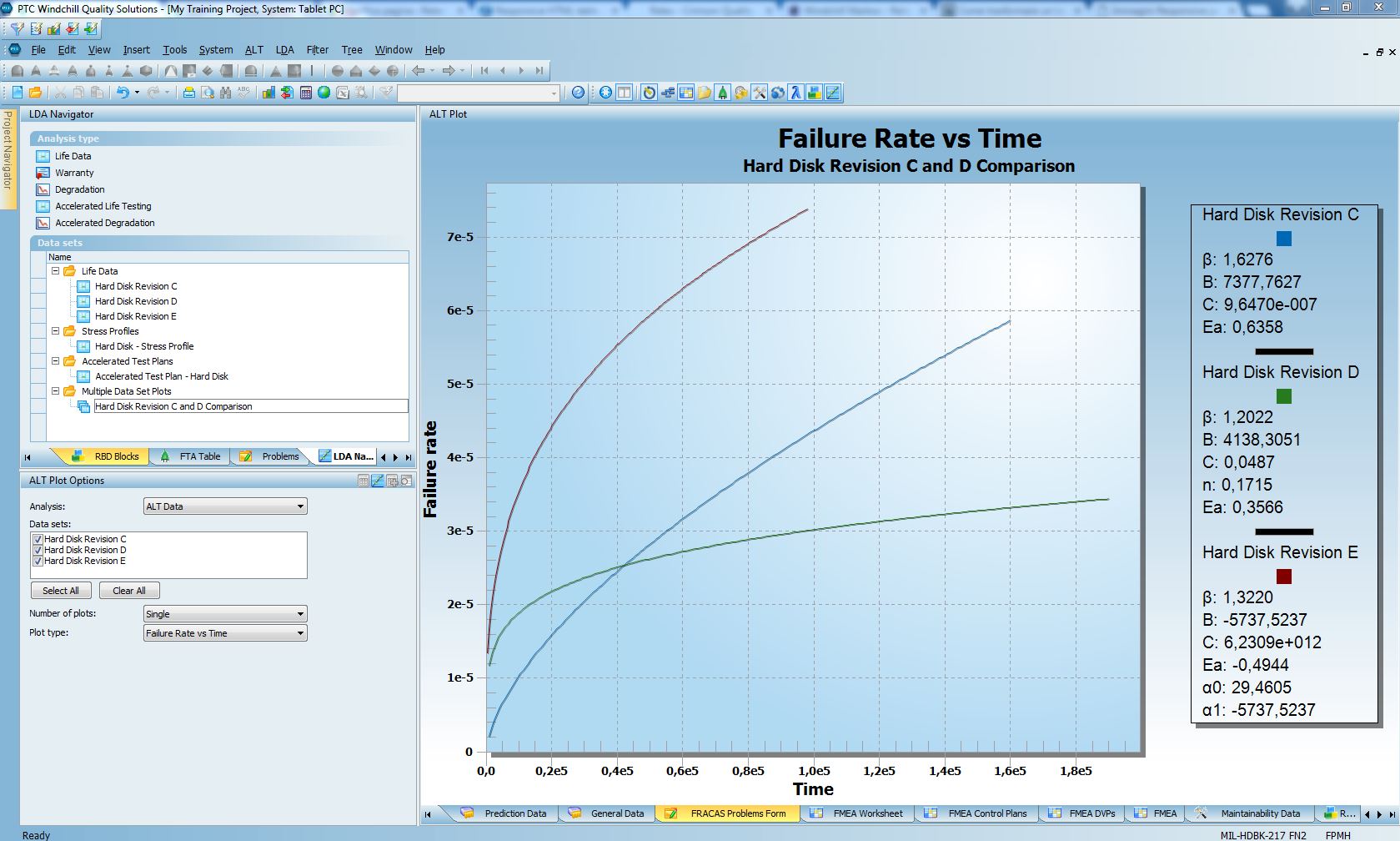

Quantitative Accelerated Life Testing: Windchill ALT supports all types of test data, including exact, censored (suspended) and interval, which may be entered as single data points or groups. Stresses may include temperature, humidity, vibration, voltage, or a combination of up to ten different stresses. Define stress profiles for each test item to describe changing levels of stress over time. Windchill ALT supports analysis with Weibull, exponential or lognormal distributions, along with life-stress relationships that include Arrhenius, Eyring, Inverse Power Law, Temperature-Humidity, Temperature-Non Thermal, Proportional Hazards and General Log-Linear. Calculate and plot a range of standard life data analysis outputs, such as probability, PDF, reliability and unreliability, along with ALT specific plots for life, standard deviation and acceleration factor vs. stress.

cache_888071381

Advanced Utilities. Windchill ALT supports a range of utilities and related functions to enhance your analyses. The Accelerated Test Planning function supports stress definition and values, typical usage stress, highest stress experienced, number of units, and test duration, then generates results that include recommended stresses and stress combinations for test, allocation of test units proportional to each stress, sample size and expected total time on test. The intuitive summary calculator ouputs product reliability at a given product age and stress level, along with warranty times, time to failure, conditional probability and mean life. Windchill ALT also includes a General Statisics Calculator that provides a wide range of useful statistical functions.

Professional Outputs. Windchill ALT is supplied with a range of industry standard reports and graphs. Easy-to-use Report and Graph Wizards provide complete user customization of outputs to fit your specific needs, without the need for IT experts. Once complete, reports and graphs can be printed or saved directly to Microsoft Word or Excel, and Adobe PDF.



Windchill ALT

Technical Highlights

Supported Calculations

  • Standard Probability
  • Conditional Probability
  • Failure Rate
  • Warranty Time
  • Time to Failure
  • Mean Life
  • Acceleration Factor
  • Parameter Bounds
  • Inverse Fisher Matrix
Conversion Capabilities

  • Celsius
  • Fahrenheit
  • Kelvin
  • Rankine
  • User-defined factor
  • Stress transformations: Exponential, Power, Arrhenius



Life-Stress Relationship Models

  • Time-Varying (CEM) and Constant, 1-       Stress: Arrhenius, Eyring, Inverse Power Law
  • Constant, 2-Stress:Temperature-Humidity, Temperature-NonThermal, Generalized Eyring
  • Constant, 1 to 10 Stresses:Proportional Hazards, General Log-Linear



Dynamic Data Links

  • Windchill Prediction
  • Windchill RBD







Download the Windchill ALT Data Sheet

Windchill_ALT
